EB-110 Waste Oil Burner
Brand: Empire
Model: EB-110
Min Order: 1 set
Payment: T/T L/C Paypal Western Union
Add to BasketInquire
Specifications:
★ Oil consumption: 2 - 10 (KG/Hour)
★ Output heat power: 24-119 (KW)
★ Output heat: 204,000-102,000(KCal/H) / 80,000-400,000(BTU/H)
★ Nozzle(s): 1 x 2.0mm
★ Distance from fire gun to flange: 173mm/6.8"
★ Blast tube Diameter: 90mm/3.5"
★ Distance of screw bore in the flange: 160x160(mm)/6.3"x6.3"
★ Compressed Air Pressure: 0.05-0.1MPa
★Power Supply(AC):220V/50Hz & 110V/60Hz both available
★ Pumping system including: a Pump, an Electric Motor, a Stainless Steel floating ball,filter, etc.
Features:
1. Various fuels are applicable, e.g. used engine oil, used vegetable oil, used crankcase oils, used Glycerin, used Hydraulic oil, used synthetic oils, waste machine shop cutting oil, waste mineral spirits solvent, waste grades #1, #3, #4 heating oils, waste mixed heavy oil etc., as well as regular oils, such as diesel, etc.
2. Automatic ignition, no needed supervision.

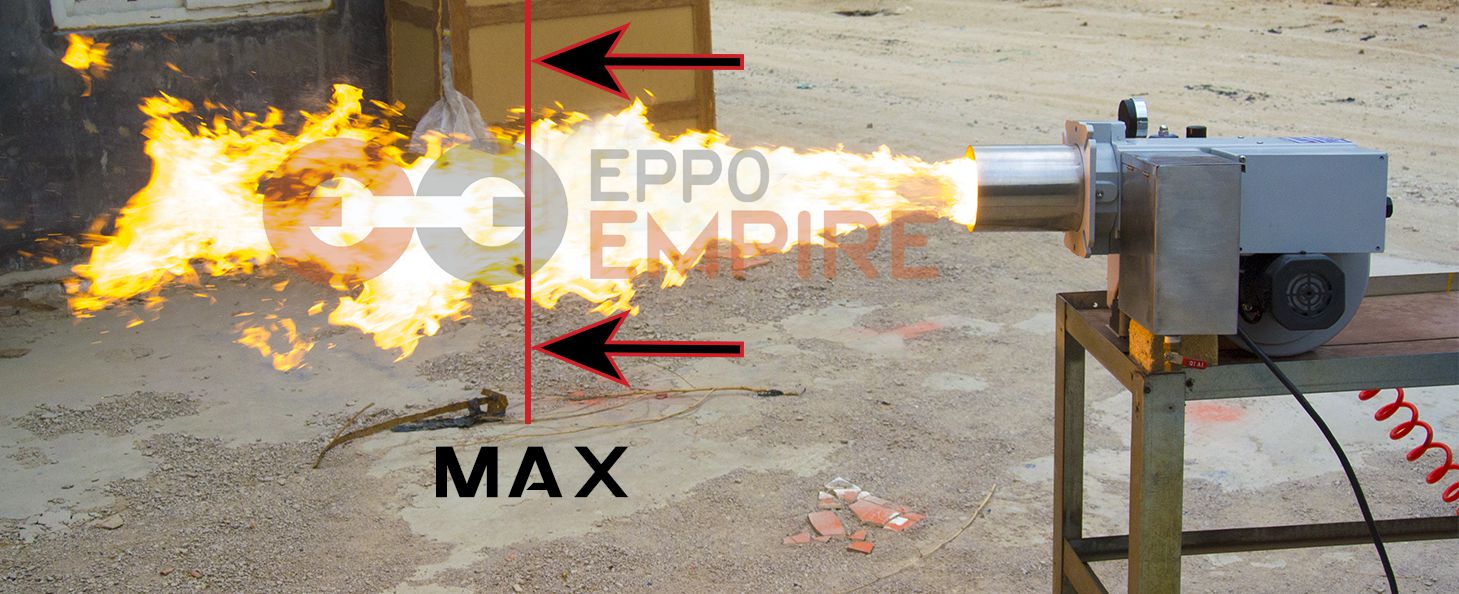

3. Flame can be adjusted easily by air-inlet controller. From the “Observing Window” operators can easily see changes of the flame.
4. All parts tested thousands of times and improved to be of good quality and reliable.
5. All errors readable from the front panel, thus EMPIRE burner is just “Smart Burner”!
6. Complete fuel burning ensures very low emissions, reducing pollution as much as possible. Environmentally –friendly, Exhausting air complies with the requirements of EURO III;

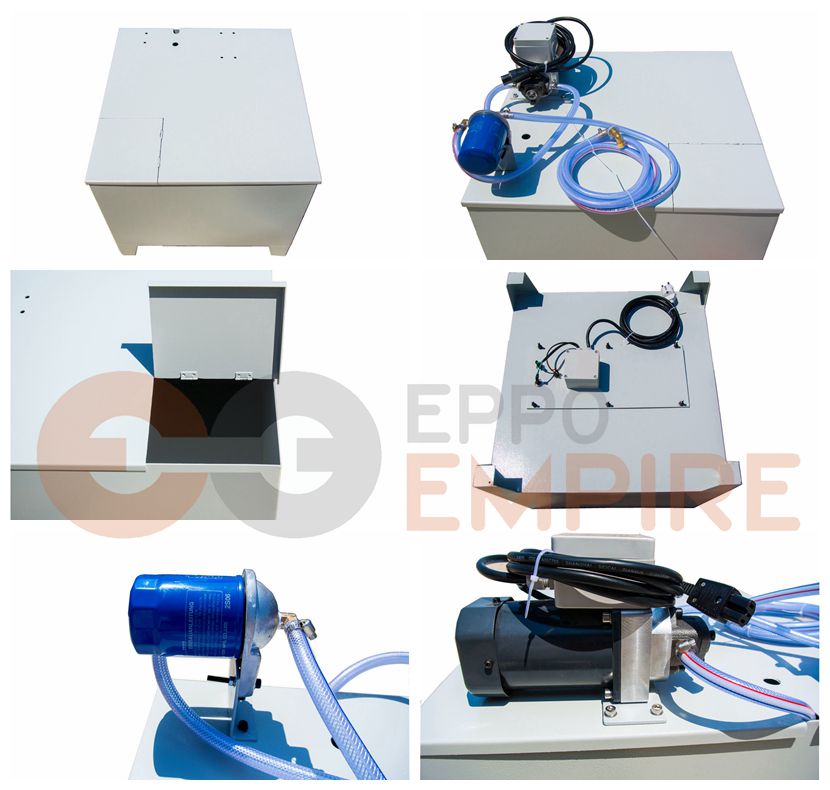

7. Big oil tank optional, as big as 100L container for holding waste oil, pumping system is held at the top to pump waste oil into burner machine; At the same time holds the burner machine during shipping from damage.
8. There is heating instrument at the bottom of big oil tank to pre-heat fuel before pumping, esp. considerate for using in cold areas.
9. Double safety design for PC program.

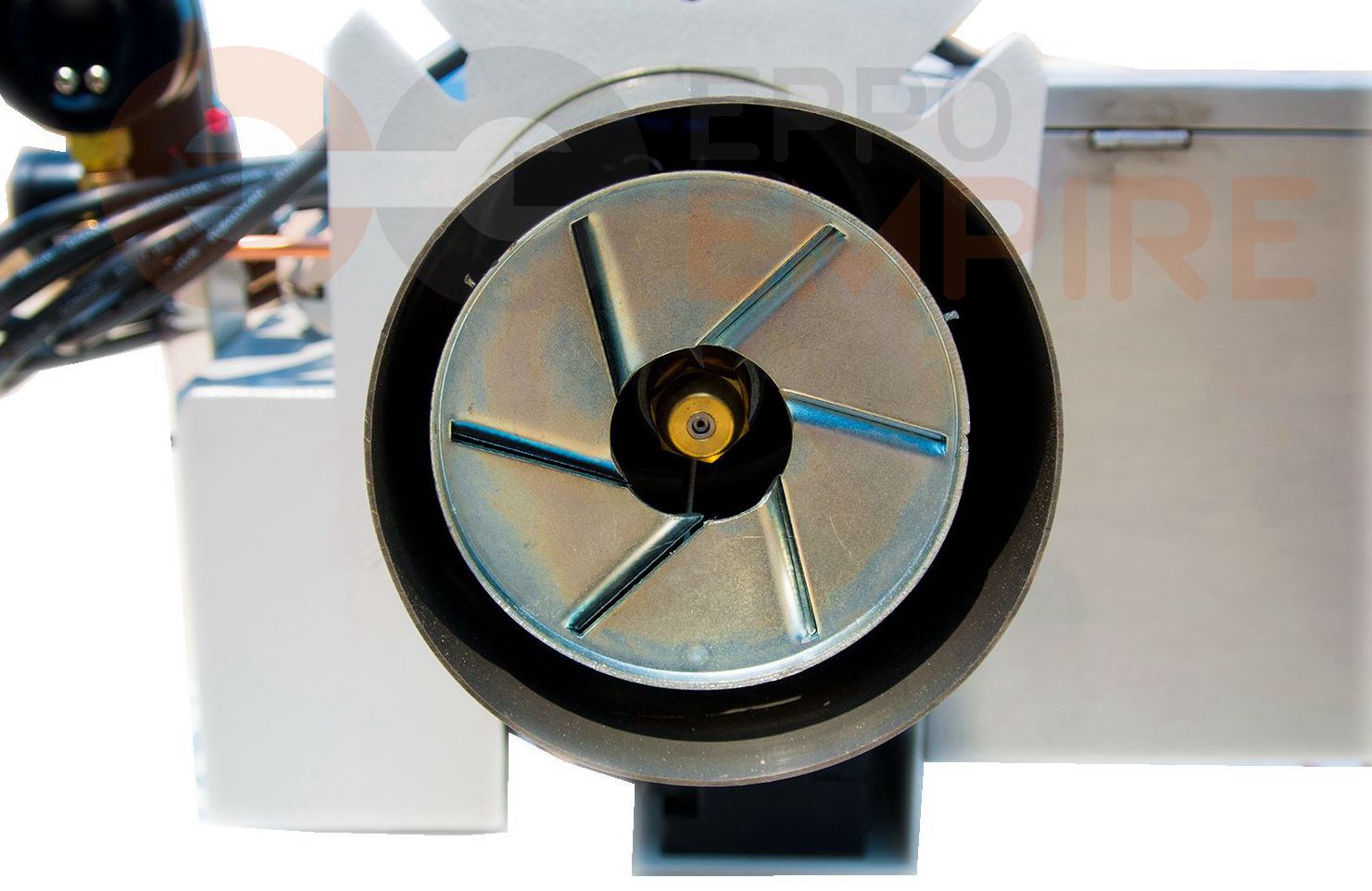

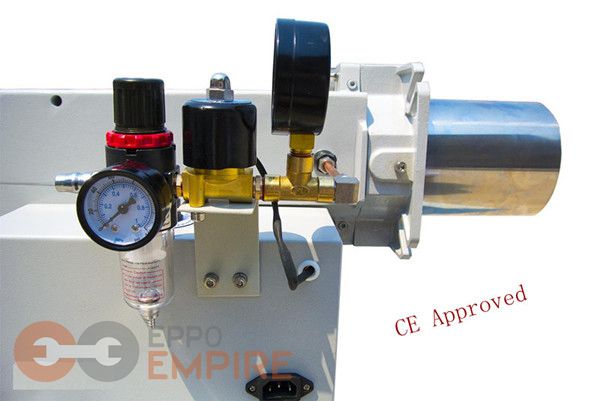

Detail pictures:
Package:
Two kinds package,
1. Express package--carton with foam inside for protect.
2. Sea transportation--plywood box.
Application:
Chicken farm
Green house
Home used
Workshop
