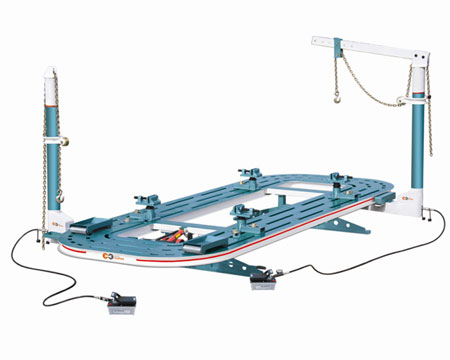

ER600

Brand: Empire

Model: ER600

Min Order: 1 set

Payment: T/T L/C Paypal Western Union

Add to Basket Inquire

ER600	A	B	C
Deck Length (Feet/Meter)	17'/5.2m	18'/5.5m	19'/5.8m
Deck Width (Feet/Meter)	7/2.1m	7/2.1m	7/2.1m
Net Weight (LB/KG)	4630LB/2100KG	4850LB/2200KG	5070LB/2300KG

Technical Data:
Working Platform Height: 22"/560 mm
Hydraulic System MWP: 70 MPa
Tower Hydraulic Cylinder Max. Lifting Force: 95 KN
Tower Pulling Range: 360
Inlet Air Pressure: 0.8 MPa
Max. Lifting Weight: 3500 KG

Features:
1. The platform is made of square tube.
2. The hydraulic towers can be moved freely alongside the platform and turn 360 as operating. The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.
3. High quality chains and plate tools are used flexibly and conveniently with long life. The entire series of tool accessories enable to do any misshape correction work.
4. Hydraulic system with good design has powerful driving force, long life and low failure rate.
5. Portable measuring system is easier for workers.
6. Major clamps fix the auto quickly, firmly and accurately.
7. Top-quality welding with high strength and good-looking.
