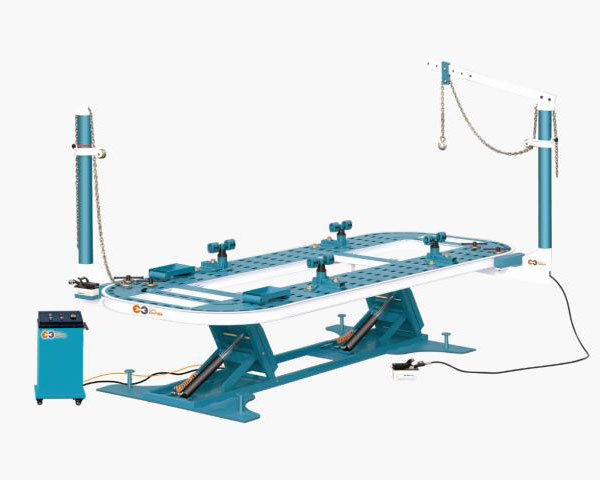

ER808

Brand: Empire

Model: ER808

Min Order: 1 set

Payment: T/T L/C Paypal Western Union

Add to BasketInquire

ER808

B

C

C

Deck Length (Feet/Meter)

18'/5.5m

19'/5.8m

20/6.1m

Deck Width (Feet/Meter)

6'7/2.0m

7/2.1m

73''/2.2m

Net Weight (LB/KG)

7055LB/3200KG

7275LB/3300KG

7496LB/3400KG


Technical Data:
Working Platform Height: 12"-40"/300-1020 mm
Hydraulic System MWP: 70 MPa
Tower Hydraulic Cylinder Max. Lifting Force: 95 KN
Tower Pulling Range: 360
Inlet Air Pressure: 0.8 MPa
Max. Lifting Weight: 3500 KG

Features:
1. The platform is Manganese plate.
2. Designed with the striation structure, no dead point in pulling with this platform
and the   tower can be moved and fixed at any point.
3. The hydraulic towers can be moved freely alongside the platform and turn 360 as operating.  The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.
4. High quality chains and plate tools are used flexibly and conveniently with long
life. The entire series of tools accessories enable to do any misshape correction work.
5. Hydraulic system  with good design has powerful driving force, long life and low failure rate.
6. The mechanical measuring system more suitable for workers.
7. Major clamps fix the auto quickly, firmly and accurately.
8. Applying parallel-connect synchronous hydraulic cylinder with high synchronous precision; the integral mechanical lock is processed one-time.
9. Without synchronous errors; the sharing beam adopts high quality manganese plate and all the welding positions ensure the position of shafts and holes.
10. Special design for lifting forces; in order to improve the service life of the oil cylinder, increase the oil cylinder diameter is increased and double oil cylinder lift at the same time. Under 15Mpa-17Mpa pressures, it can meet the lifting requirements of 3000KG auto weight.
11. Removable cross-members.
